Self-tapping straps

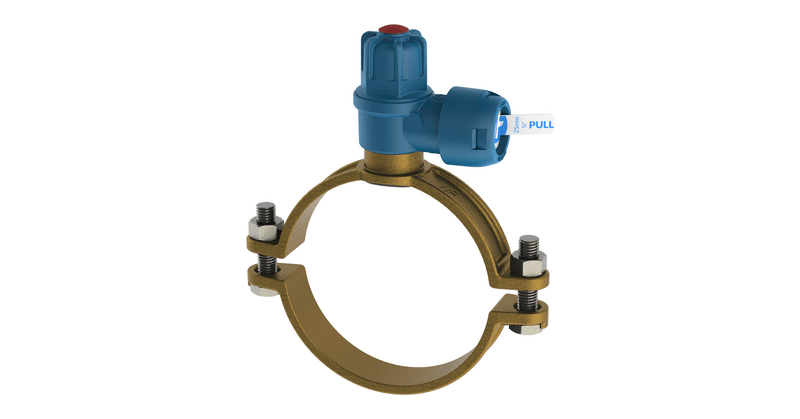

Ferrule Strap — PE/PVC Pipe
Self-tapping gunmetal ferrule strap for service connections to PE and PVC water mains. The strap, cutter and outlet come as one fitting, with a gunmetal pushfit, polymer pushfit or BSP female iron outlet.
Specifications
- Material
- CC491K gunmetal strap · A2-70 stainless steel bolts
- Standard
- WIS 4-22-02
- Working pressure
- 16 bar
- Connection
- Gunmetal pushfit · polymer pushfit · BSP female iron
Features
- Self-tapping: drills, taps and connects in one fitting
- Gunmetal pushfit, polymer pushfit or female iron outlets
- Sizes for PE mains from 50mm to 180mm and PVC mains from 3" to 6"
- WRAS approved components
Sizes & Part Codes
| Size | Part Code | Notes |
|---|---|---|
| 50mm PE main | FSM3669 | 20mm gunmetal pushfit outlet |
| 50mm PE main | FSM3670 | 25mm gunmetal pushfit outlet |
| 63mm PE main | FSM3172 | 20mm gunmetal pushfit outlet |
| 63mm PE main | FSM3541 | 25mm gunmetal pushfit outlet |
| 110mm PE main | FSM3606 | 25mm gunmetal pushfit outlet |
| 110mm PE main | FSM3569 | 32mm gunmetal pushfit outlet |
| 125mm PE main | FSM2926 | 25mm gunmetal pushfit outlet |
| 180mm PE main | FSM3295 | 25mm gunmetal pushfit outlet |
| 180mm PE main | FSM3983 | 32mm gunmetal pushfit outlet |
| 3" PVC main | FSI3981 | 25mm gunmetal pushfit outlet |
| 4" PVC main | FSI3849 | 25mm gunmetal pushfit outlet |
| 6" PVC main | FSI3303 | 25mm gunmetal pushfit outlet |
| 50mm PE main | FSM0184 | 25mm polymer pushfit outlet |
| 63mm PE main | FSM0203 | 25mm polymer pushfit outlet |
| 63mm PE main | FSM0205 | 32mm polymer pushfit outlet |
| 90mm PE main | FSM0155 | 25mm polymer pushfit outlet |
| 90mm PE main | FSM0157 | 32mm polymer pushfit outlet |
| 110mm PE main | FSM0097 | 25mm polymer pushfit outlet |
| 110mm PE main | FSM0099 | 32mm polymer pushfit outlet |
| 125mm PE main | FSM0107 | 25mm polymer pushfit outlet |
| 125mm PE main | FSM0109 | 32mm polymer pushfit outlet |
| 160mm PE main | FSM2211 | 25mm polymer pushfit outlet |
| 160mm PE main | FSM2219 | 32mm polymer pushfit outlet |
| 180mm PE main | FSM0125 | 25mm polymer pushfit outlet |
| 180mm PE main | FSM0127 | 32mm polymer pushfit outlet |
| 63mm PE main | FSM0965 | ½" BSP female iron outlet |
| 63mm PE main | FSM0197 | ¾" BSP female iron outlet |
| 63mm PE main | FSM0966 | 1" BSP female iron outlet |
| 90mm PE main | FSM0150 | ¾" BSP female iron outlet |
| 90mm PE main | FSM0967 | 1" BSP female iron outlet |
| 110mm PE main | FSM2022 | ¾" BSP female iron outlet |
| 125mm PE main | FSM0970 | ½" BSP female iron outlet |
| 125mm PE main | FSM0958 | ¾" BSP female iron outlet |
| 160mm PE main | FSM0939 | ¾" BSP female iron outlet |
| 180mm PE main | FSM1175 | ¾" BSP female iron outlet |
| 4" PVC main | FSI0170 | 1" BSP female iron outlet |
| 6" PVC main | FSI2283 | ¾" BSP female iron outlet |
